UNEEKOR QED LAUNCH MONITOR

Description

BALL DATA
Ball Speed	Velocity at which the ball is traveling when it leaves the club face after impact.
Side Spin	Horizontal spin measurement affecting golf ball movement left or right in flight.
Back Spin	Measurement of reverse rotation of the golf ball relative to its trajectory (Backspin generates upward lift and stopping power upon landing).
Side Angle	Angle at which the ball starts its flight, relative to a straight target line (Horizontal launch angle).
Side Total	Deviation left or right of the target while the ball is in the air.
Launch Angle	The initial vertical launch angle of the golf ball post-clubface impact (relative to the ground).
Angle of Descent	The descent angle of the golf ball after reaching its peak trajectory.
Flight Time	The total amount of time the golf ball is in the air.
Spin Axis	The imaginary line around which a spinning object rotates. In the context of sports like golf or baseball, it specifically refers to the axis around which the ball is spinning. In golf, the spin axis affects the ball’s trajectory, determining whether it will curve to the left or right during flight.
Distance to Apex	The distance covered by the ball in the air until it reaches the highest point of its trajectory.
Apex	The peak height of the ball’s trajectory.
Ball Flight Type	Description of the balls initial start direction and shot shape.
Carry Distance	Total distance the ball traveled in the air.
Run	Distance the ball travels after making contact with the ground.
Total Distance	Total distance the golf ball travels including the carry and run.

CLUB DATA
Club Speed	The speed of the club at impact.
Smash Factor	Quantifies the efficiency of impact between the club face and the golf ball. It is calculated by dividing the speed of the ball by the speed of the club head at impact. A higher smash factor indicates a more efficient transfer of energy from the club to the ball, typically resulting in greater distance and accuracy.
Face to Path	The angular difference between the face angle and club path.
Club Path	The in to out, or out to in movement of the club head’s geometric center at the center at the time of impact. Club Path is the direction (right or left) the club head is moving at impact and is measured relative to the target line.
Face Angle	The angular direction of the clubface at impact with the golf ball.

Recommended Computer Requirements

Recommended
CPU	Intel i7 or higher, 10th generation or later
RAM	16GB or more
GPU	NVIDIA RTX 30 series or later
GPU Memory	16GB or more
Hard Drive	200GB or more of available space
OS	Windows 11 (64-bit only)

Minimum
CPU	Intel i5 8400
RAM	16GB
GPU	GeForce GTX 1060
OS	Windows 10 (64-bit only) Version 1803 or higher***

Note
* PC Sold Separately
* 25Mbps internet connection required
* Other operating systems (Mac, Linux) are not supported
* Dedicated ethernet port required for launch monitor

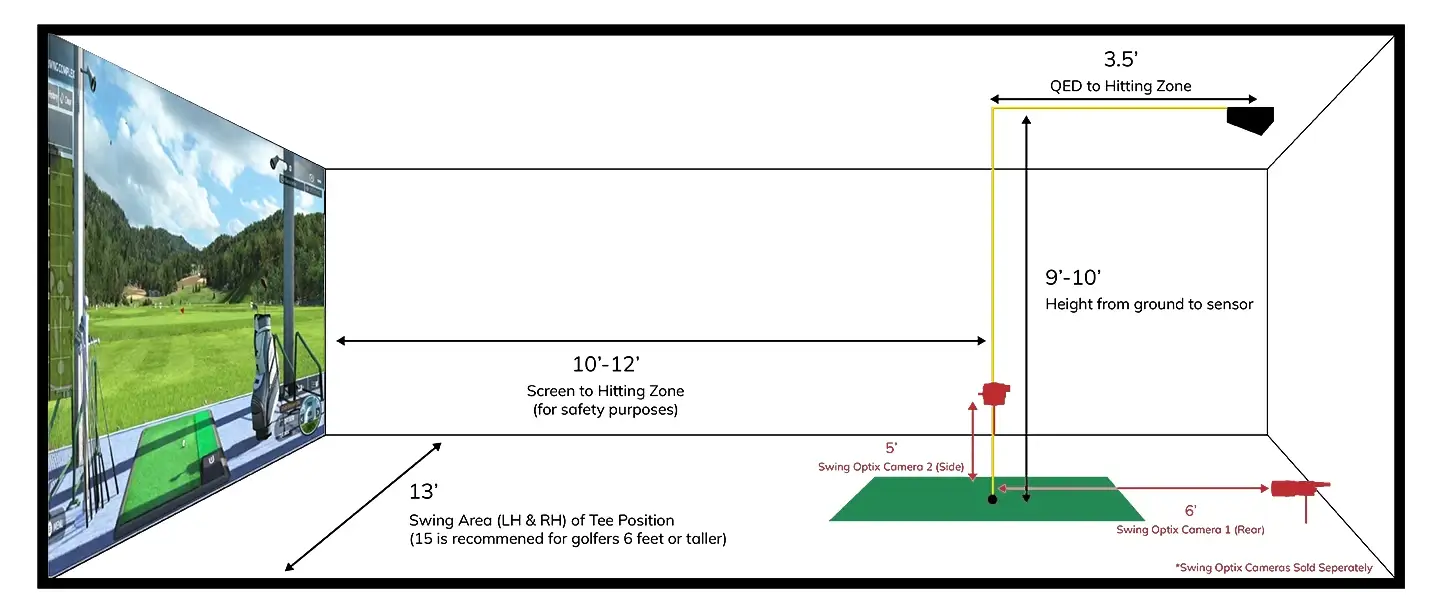

Space Requirements

Additional Info

Weight

25 kg
