IDS Slow Motion Camera – U3-3160CP Rev. 2

Name: IDS Slow Motion Camera - U3-3160CP Rev. 2
SKU: IDS3060
Price: 1794.95 GBP
Availability: InStock

£1,794.95

Are you looking for a Golf Swing Camera? – This IDS Camera is super high quality, slow motion video footage of your swing on your TrackMan unit? The UI-3060CP with Sony’s 2.3 MP sensor IMX174 (1936 x 1216 px) sets a new standard in terms of light sensitivity, dynamic range and color reproduction. The USB 3 industrial camera provides excellent image quality when paired with TrackMan to display super smooth, frame by frame analysis of your swing.

This product qualifies for Free UK Next Day Delivery

Order by 1:00 pm on Friday 16th October for free delivery on Monday 19th October

Description

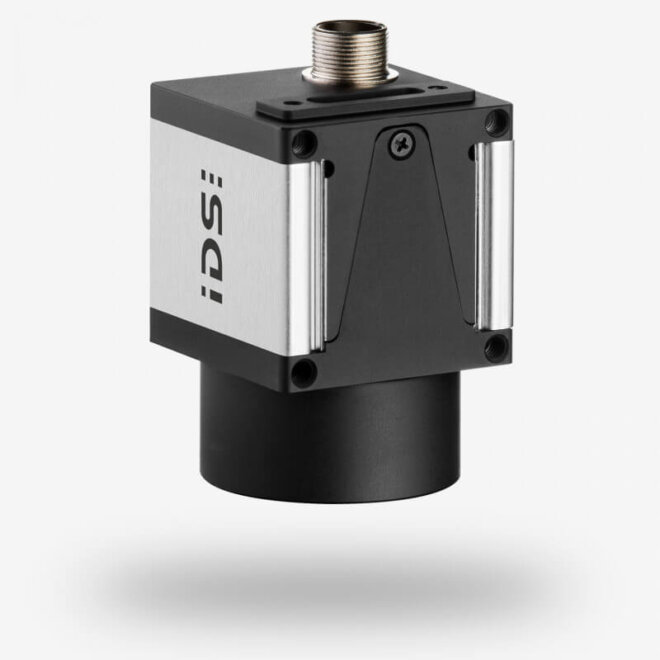

Incredibly fast, incredibly reliable, incredible sensors: the uEye CP stands for “Compact Power” and is the tiny powerhouse for industrial applications of all kinds. It offers maximum functionality with extensive pixel pre-processing and, thanks to the internal 120 MB image memory, is also perfectly suited for multi-camera systems. The USB 3.0 cameras enable a high data rate of 420 MByte/s, low CPU utilization and easy integration.
Users can choose from a large number of modern CMOS sensors from manufacturers such as Sony, ams/CMOSIS, e2v and Onsemi with different resolutions. Due to its innovative, patented housing design with dimensions of only 29 x 29 x 29 millimetres and best processing quality, the camera makes even designer hearts beat faster. In addition, screwable cables ensure a reliable electrical connection.

The cameras are suitable, for example, for tasks in fields such as automation, automotive, printing and packaging, medical technology and life sciences, agriculture, logistics as well as traffic and transport.
Note: Due to the high performance of modern sensors, some USB 3.0 uEye CP models are not supported in USB 2.0 mode. The USB 2.0 interface does not provide sufficient power for this. Further information can be found in the manual for IDS Software Suite.

It’s so easy!

Plug & Play principle

The cameras are automatically detected in the system and are immediately ready for use. Buy a camera, connect it, receive an image – it couldn’t be easier!

Versatile use!

Practical 8-pin I/O connector

Real-time image trigger capability, synchronous flash signals, a serial communication interface and two GPIOs which can be operated as both an input and an output, open up a huge range of applications.

Extremely compact!

Dimensions 29 x 29 x 29 mm

The small magnesium housing is as light (approx. 50 grams) as it is sturdy. This underlines the uncompromising industrial suitability of the cameras. They are ideal for space-critical applications and particularly suitable for use in multi-camera and 3D systems.

Specifications

Item number	UI-3060CP-C-HQ Rev.2: AB00605 UI-3060CP-M-GL Rev.2: AB00604
Name	UI-3060CP Rev. 2
Camera family	CP
Interface	USB 3
Interface-Speed	5.00 Gbps
Sensor type	CMOS
Sensor manufacturer	Sony
Frame rate @ resolution max.	166 fps
Resolution (h x v)	1936 x 1216
Optical Area	11.345 mm x 7.126 mm
Shutter	Global Shutter
Optical class	1/1.2″
Resolution	2.35 MPix
Pixel size	5.86 µm
IP code	IP30
Product Life Cycle	Series
Sensor model	IMX174
Data sheet	UI-3060CP-C-HQ Rev.2 UI-3060CP-M-GL Rev.2
